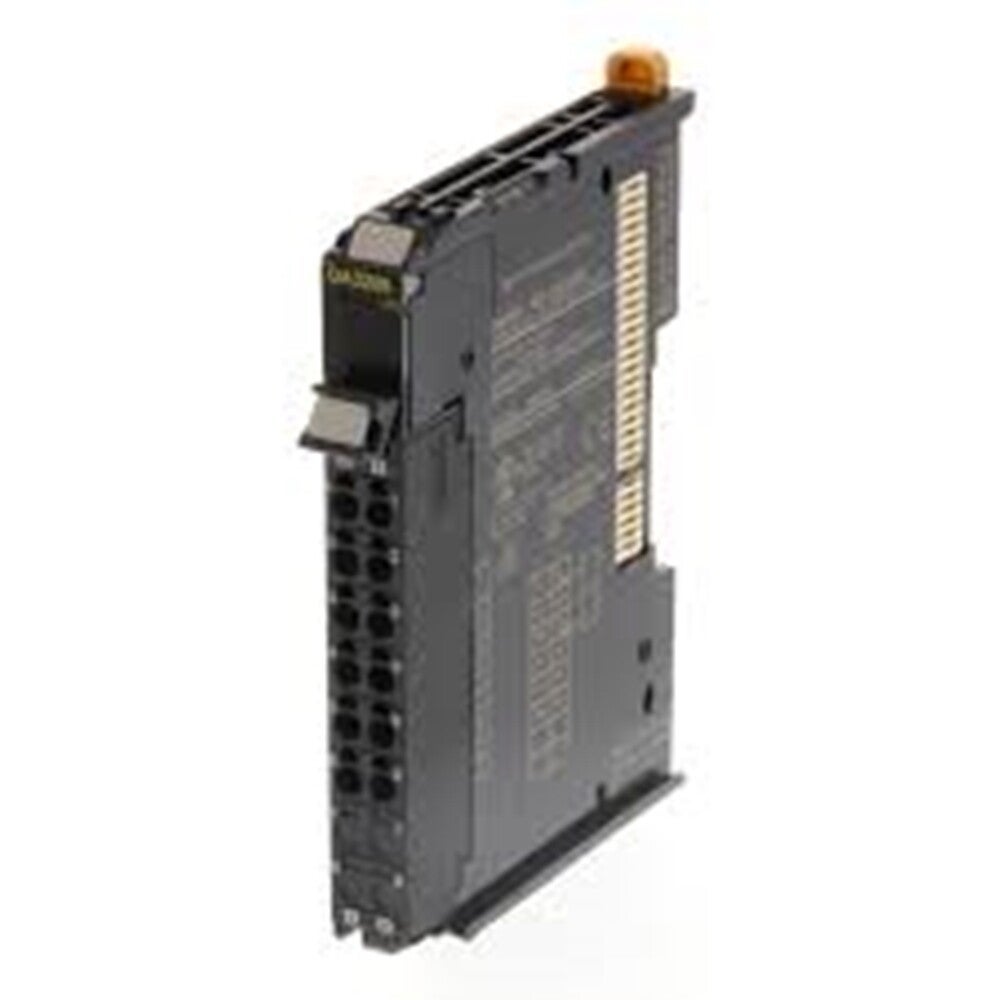

OMRON NX-DA3205
OMRON NX-DA3205 4 Analog Outputs, 4 – 20 mA, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide.
| SPECIFICATIONS | |
|---|---|
| I/O system | NX I/O Bus |
| Type of module | Analog I/O |
| Number of analog inputs | 0 |
| Temperature input type | None |
| Linear analog input type | None |
| Input circuit type | None |
| Number of analog outputs | 4 |
| Linear analog output type | 4 to 20 mA |
| Resolution of the analog outputs | 15 Bit |
| Conversion time | 0.04 ms/unit |
| Signal processing | Synchronous |
| IO link master | NA |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | + |
| Suitable for safety functions | NA |
| SIL according to IEC 61508 | None |
| Degree of protection (IP) | IP20 |
| Height | 100 mm |
| Width | 12 mm |
| Depth | 71 mm |
| Weight | 70 g |
