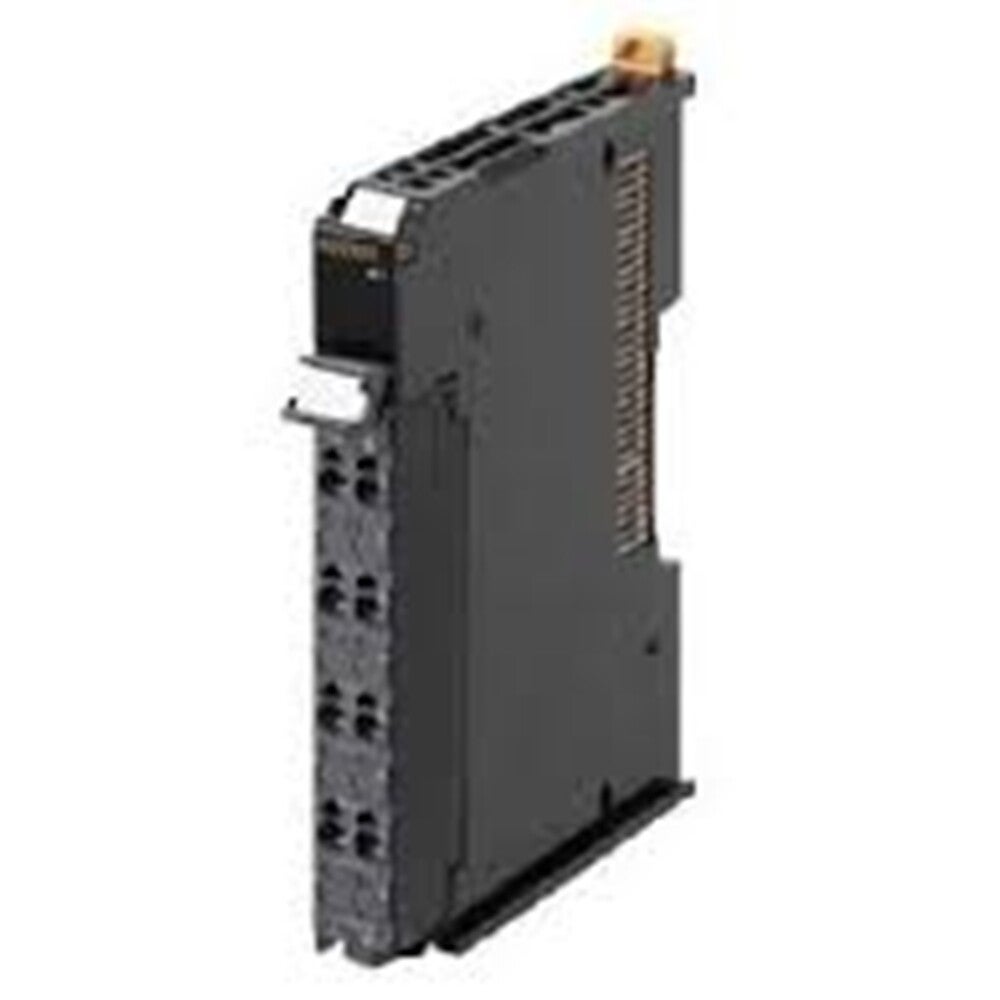

OMRON NX-ID3417
4 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connector, 12 mm wide
| SPECIFICATIONS | |
|---|---|
| I/O system | NX I/O Bus |
| Type of module | Digital I/O |
| Number of digital inputs | 4 |
| Digital input type | PNP |
| Permitted voltage at input | 9-28.8 V |
| OFF/ON delay | 0.02-0.4 ms |
| Number of digital outputs | 0 |
| Digital output type | None |
| Short-circuit protected outputs | NA |
| Connection method | 2-wire, 3-wire |
| Signal processing | Free running, Standard speed, Synchronous |
| IO link master | NA |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | + |
| Suitable for safety functions | NA |
| SIL according to IEC 61508 | None |
| Communication port(s) | None |
| Number of IOV (V+) terminals | 4 |
| Number of IOG (V-) terminals | 4 |
| Number of COM terminals | 0 |
| Degree of protection (IP) | IP20 |
| Height | 100 mm |
| Width | 12 mm |
| Depth | 71 mm |
| Weight | 65 g |
