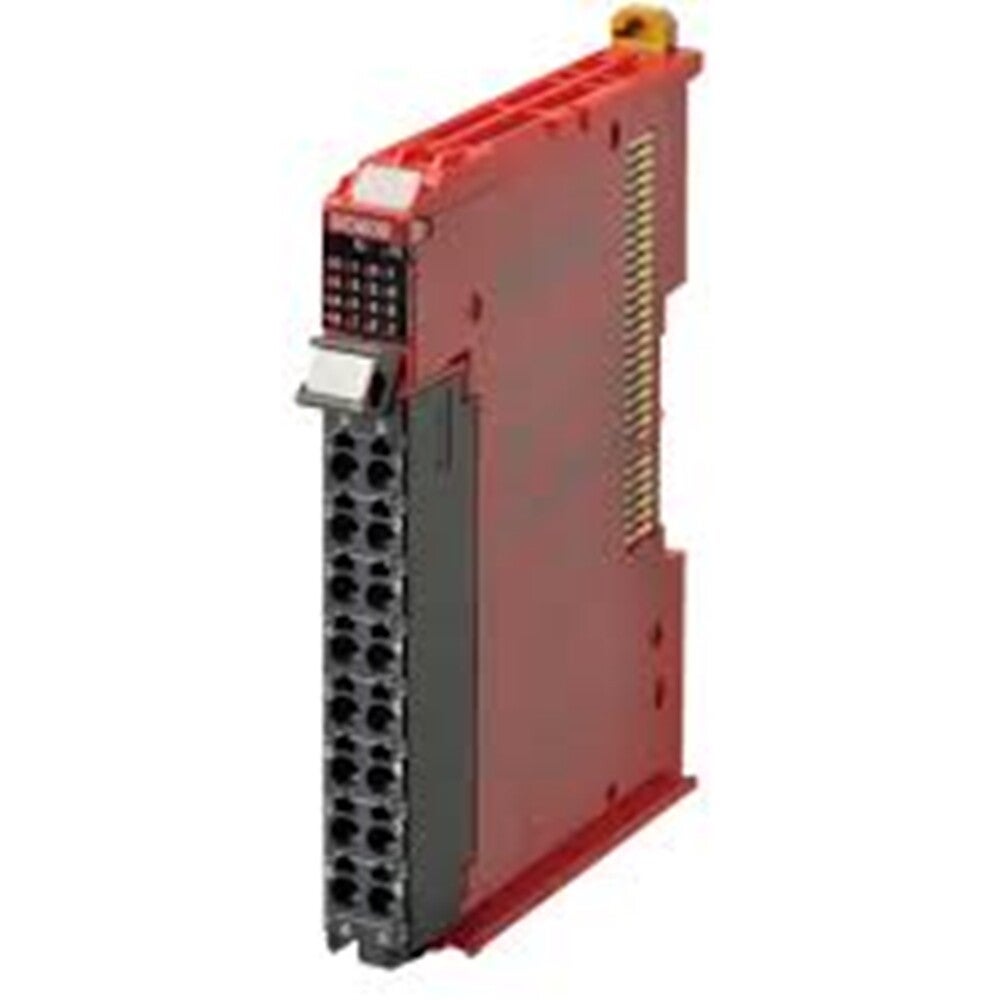

OMRON NX-SID800
OMRON NX-SID800 8 Digital Safety Inputs, PNP 24 VDC, screwless push-in connector, 12 mm wide.
| SPECIFICATIONS | |
|---|---|
| I/O system | NX I/O Bus |
| Type of module | Safety I/O |
| Number of digital inputs | 8 |
| Digital input type | PNP |
| Permitted voltage at input | 20.4-28.8 V |
| Number of digital outputs | 2 |
| Digital output type | None |
| Short-circuit protected outputs | |
| Connection method | 4-wire |
| Signal processing | Free running |
| IO link master | |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| SIL according to IEC 61508 | 3 |
| Communication port(s) | None |
| Number of IOV (V+) terminals | 0 |
| Number of IOG (V-) terminals | 0 |
| Number of COM terminals | 0 |
| Degree of protection (IP) | IP20 |
| Height | 100 mm |
| Width | 12 mm |
| Depth | 71 mm |
| Weight | 90 g |
