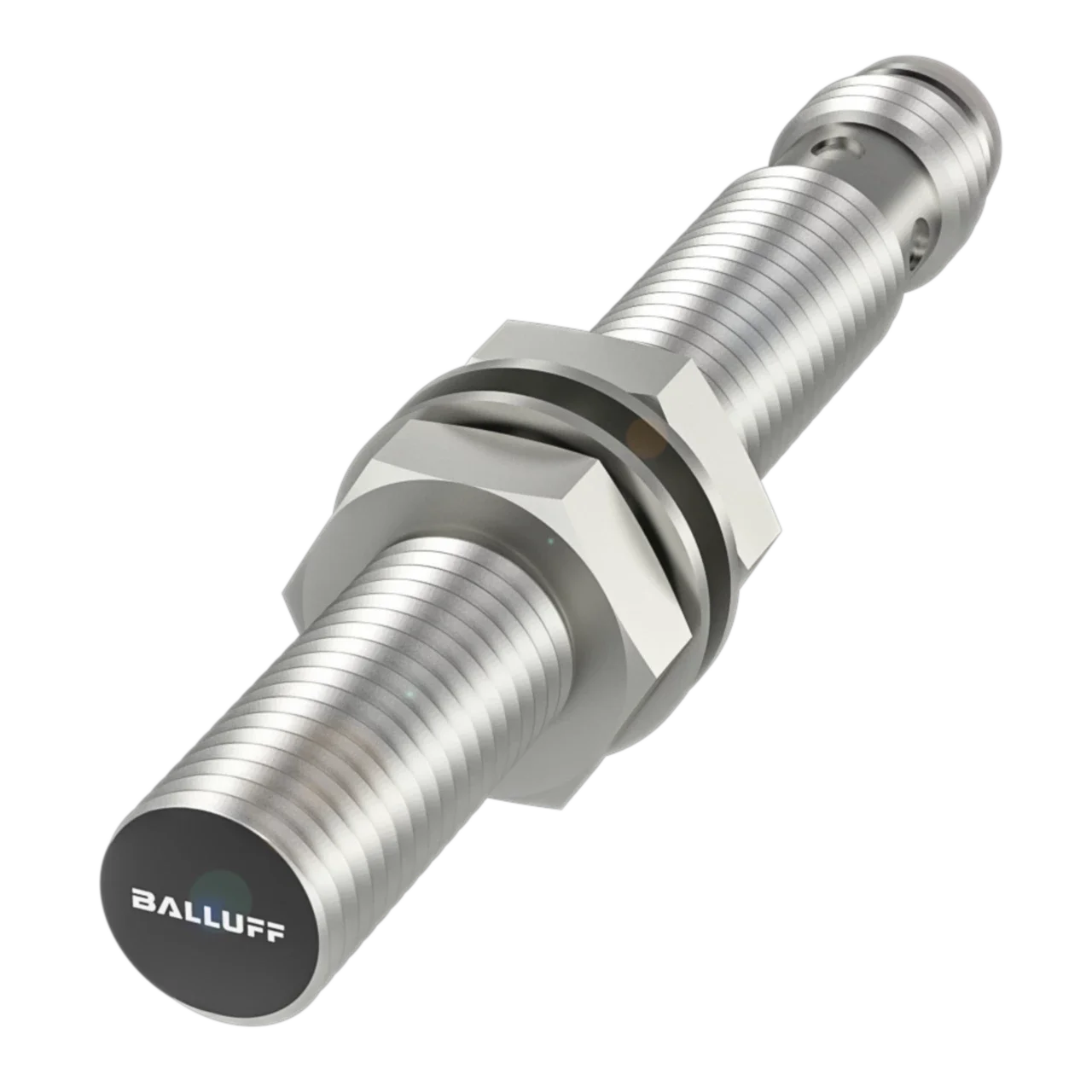

BALLUFF BES003P Inductive standard sensors with different types.

BALLUFF BES003P Inductive standard sensors with different types.

Inductive standard sensors with preferred types

DimensionØ 8 x 60 mm

StyleM8x1 Installation for flush mounting Range2 mm

Switching output

PNP Normally open (NO)Switching frequency5000 HzHousing material brass, Nickel-free coated material sensing surface PBT

ConnectionConnector, M8x1-Male, 3-pin

Operating voltage Ub10…30 VDC

Ambient temperature-25…70 °CIP ratingIP68

Approval/ConformityEAC
cULus
CE
WEEE
