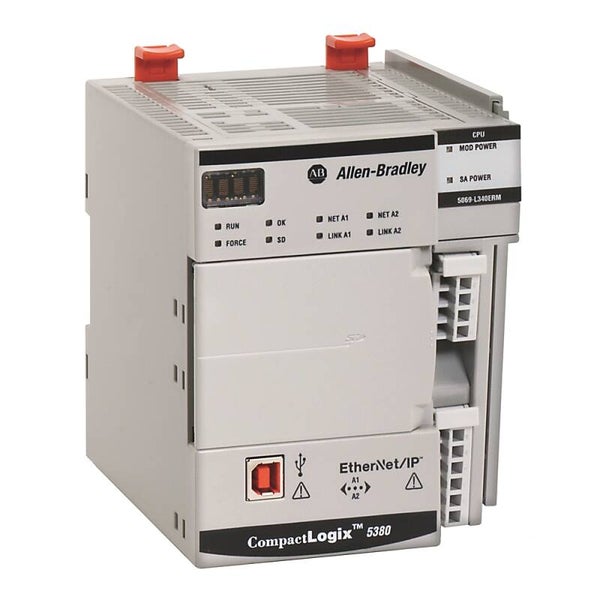

ALLEN BRADLEY 5069-L340ERMS2

The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed,

DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

SPECIFICATIONS
Non-volatile memory 2GB via 1784-SD2 (ships with the controller)
Dimensions 143.97 x 98.10 x 136.81 mm (5.67 x 3.86 x 5.39 in.)
Programming Languages Sequential Function Chart, Function Block Diagram, Structured Text, and Ladder Diagram
CIP drive axes Twenty (20)
Motion Axes, maximum 256 Motion Axes
Integrated Motion Yes
Communication rate, USB 12 Mbps
Communication rate, Ethernet 10 Mbps / 100 Mbps / 1 Gbps
Communication Ports 1 Type B 2.0 Full-Speed USB and 2 Ethernet/IP Ports
Local I/O modules 31 I/O modules
Supported Ethernet/IP Network Topologies Device Level Ring, Star, and Linear
SIL Rating SIL 2
No. of tasks 31 Standard tasks; 1 Safety Task
Part Number 5069-L340ERMS2
Safety Memory 2 MB
Application Memory 4 MB
Module Type Compact GuardLogix Controller
Product Type Controller
Manufacturer Allen-Bradley
Series CompactLogix
Controller Tasks 32
Programs/task 1000
User Memory 4 MB + 2 MB safety
Ports 2 Ethernet
Port 1 USB
Network Nodes 90
