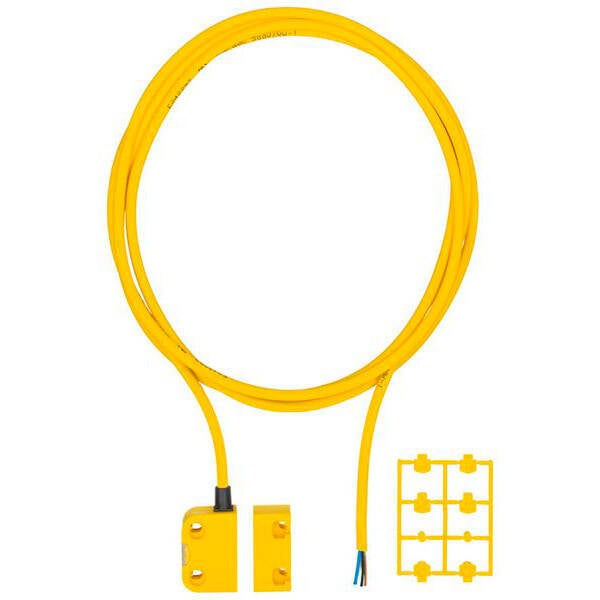

PILZ PSEN MA1-4A-50/PSEN MA1.4-10MM/1UNIT ( 506322 )
PILZ , Magnetic safety switch 2 n/o, square design, IP6K9K, operating distance 10
mm, 5 m cable, height design 18 mm, PU = 1 sensorwith actuator.
MODEL NO: PILZ PSEN ma1.4a-50/PSEN
| SPECIFICATIONS | ||
|---|---|---|
| Type of safety switch | magnetic | |
| Manufacturer series | PSEN ma1.4 | |
| Contacts configuration | NO x2 | |
| Safety switches features | without LED | |
| IP rating | IP6K9K | |
| Electrical connection | 5m wires | |
| Operating temperature | -10…55°C | |
| Body dimensions | 37×26.4x18mm | |
| Switched voltage | max. 24V DC | |
| Range | 10mm | |
| Trade name | PSENmag | |
| Engineering PN | PSEN ma1.4a-50 |
