PILZ PSEN MA1-4P-50-PSEN MA1.4-10MM/ 1UNIT ( 506334 )

PILZ PSEN MA1-4P-50-PSEN

TECHNICAL DATA:

General Data:

Approval: CE, cULus Listed, EAC (Eurasian), TÜV
Sensor principle: magnetic
Coding level to ISO 14119: Low
Classification to EN 60947-5-3: PDDB
Suitable for series connection: no
unit type: Unit
Technical data
Electrical data
Supply voltage (V): 24 – 24 V
Type of supply voltage U1: DC
Switching voltage: 24 V
Environmental data
Ambient temperature: -10 – 55 °C
Climatic suitability standard: IEC 60068-2-30
Humidity rating: 93 % r. h. at 40 °C
Perm. operating height ASL: 2000 m
EMC to standard …: EN 60947-5-3
Vibration to standard …: EN 60947-5-2
Acc. shock to standard1: 30g

Pollution degree clear.&creep.: 3
Mechanical data
Type 1 actuator: PSEN ma1.4-10mm
Sensor can be flush-mounted: Yes, follow installation guide
Connection type: M8, 4-pin male
Cable lines: LiY11Y 4 x 0.25 mm2
Housing material upper part: PBT
Height dimension: 37 mm
Width dimension: 26.4 mm
Depth dimension: 18 mm
Net weight: 53 g
Gross weight: 68 g
Environment
WEEE classifikation (08/2018): 5 devices (feed size < 50cm)
Commercial data
ECLASS version: ECLASS-9.1
ECLASS Reference Feature: 27272402
ETIM Version: ETIM-7.0
ETIM Reference Group: EG000026

PILZ PSEN ma1-4p-50-PSEN

ma1-4p-50-PSEN

ma1-4p-50-PSEN PILZ PSEN

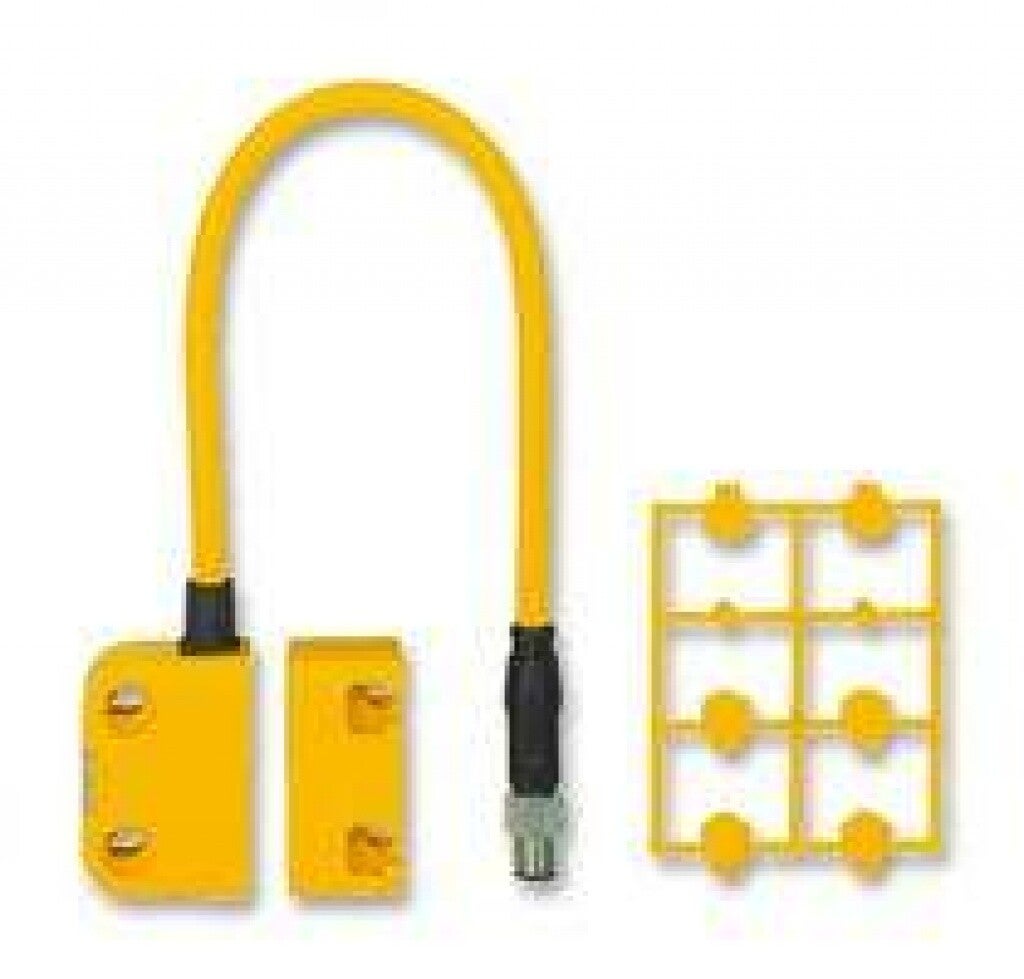

PILZ , Magnetic safety switch 2 n/o, 4-pin M8 male connector, square design, IP67, switching distance 10 mm, height design 18 mm, PU = 1 sensor with actuator.
