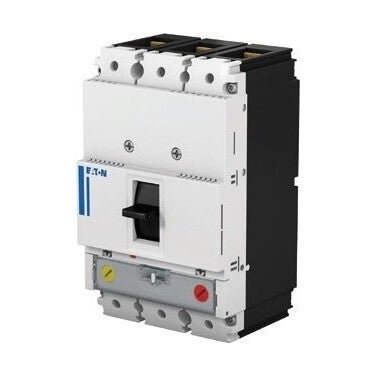

EATON PDE13G0100TAAJ CIRCUIT BREAKER
Available stocks!
PDE13G0100TAAJ – Circuit breaker, 100A, 36kA, 3p, box terminal
SPECIFICATIONS
IEC/EN 60947
Ambient temperatureAmbient temperature, storage
– 20 – + 70 °C
Ambient temperatureOperation
-20 – +70 °C
Direction of incoming supply
Vertical and 90° in all directions
Degree of protectionDevice
IP2X with finger guard accessories
Circuit-breakers
Rated current = rated uninterrupted current [In = Iu]
100 A
Rated surge voltage invariability [Uimp ]Main contacts
6000 V
Rated surge voltage invariability [Uimp ]Auxiliary contacts
6000 V
Rated operational voltage [Ue]
440 V AC
Rated operational voltage [Ue]
250 V DC
Overvoltage category/pollution degree
III/3
Rated insulation voltage [Ui ]
800 V
Product range
Circuit-breaker
Protective function
System and cable protection
Standard/Approval
IEC
Installation type
Fixed
Release system
Thermomagnetic release
Construction size
PDE1
Description
thermally adjustable, magnetically adjustable; calibrated at 40°C
Number of poles
3 pole
Standard equipment
Box terminal
Switching capacity
400/415 V 50 Hz [Icu ]
36 kA
