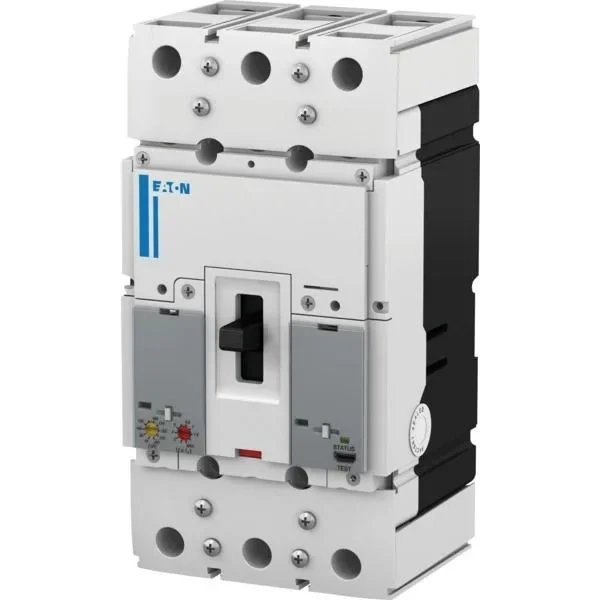

EATON PDE23G0250VAAS CIRCUIT BREAKER
Available stocks!
PDE33F0250VAAS – Circuit breaker, 250A, 25kA, 3p, 50°C, screw terminal.
SPECIFICATIONS
IEC/EN 60947
Ambient temperatureAmbient temperature, storage– 20 – + 70 °C
Ambient temperatureOperation-20 – +70 °C
Direction of incoming supplyVertical and 90° in all directions
Degree of protectionDeviceIP2X with finger guard accessories
Circuit-breakers
Rated current = rated uninterrupted current [In = Iu]250 A
Rated surge voltage invariability [Uimp ]Main contacts8000 V
Rated surge voltage invariability [Uimp ]Auxiliary contacts4000 V
Rated operational voltage [Ue]440 V AC
Rated operational voltage [Ue]250 V DC
Over voltage category/pollution degreeIII/3
Rated insulation voltage [Ui ]800 V
Product range
Circuit-breaker
Protective function
System and cable protection
Standard/Approval
IEC
Installation type
Fixed
Release system
Thermo magnetic release
Construction size
PDE3
Description
thermally adjustable, magnetically adjustable; calibrated at 50°C
Number of poles
3 pole
Standard equipment
Screw connection
Switching capacity
400/415 V 50 Hz [Icu ]
25 kA
