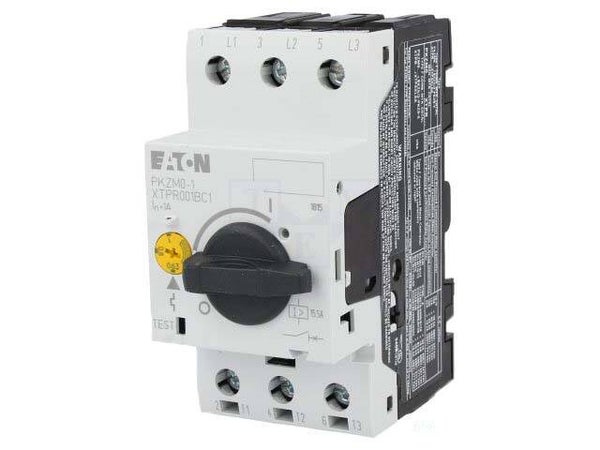

EATON PKZM0-1 EA MOTOR PROTECTIVE CIRCUIT – BREAKER
Available stocks!
EATON PKZM0-1 EA
SPECIFICATIONS
Product range
PKZM0 motor protective circuit-breakers up to 32 A
Basic function
Motor protection
Notes
Also suitable for motors with efficiency class IE3.
Connection technique
Screw terminals
Max. motor rating
AC-3220 V 230 V 240 V [P]
0.12 kW
AC-3380 V 400 V 415 V [P]
0.25 kW
AC-3440 V [P]
0.25 kW
AC-3500 V [P]
0.37 kW
AC-3660 V 690 V [P]
0.55 kW
Rated uninterrupted current [Iu]
1 A
Setting range
Phase-failure sensitivity
IEC/EN 60947-4-1, VDE 0660 Part 102
Notes
Overload trigger: tripping class 10 A
Can be snapped on to IEC/EN 60715 top-hat rail with 7.5 or 15 mm height.
Can be snapped on to IEC/EN 60715 top-hat rail with 7.5 or 15 mm height.
