SCHNEIDER GZ1E06 GZ1 E is 3 poles 3d thermal-magnetic circuit breaker specifically designed for the control and protection of motors conforming to standards.
SCHNEIDER GZ1E06

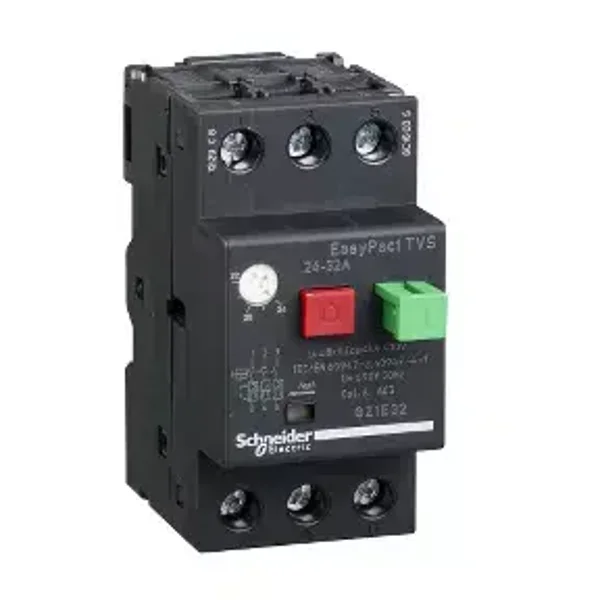

GZ1 E are 3 poles 3d thermal-magnetic circuit breakers specifically designed for the control and protection of motors conforming to standards IEC 60947-2 and IEC 60947-4-1. Setting range of thermal trips is 1-1.6A with thermo magnetic trip unit. It provides IP 41 in GV2 MC01 enclosure and IP 55 in GV2 MC02 enclosure protection. It procures standard reliability and durability with 0.1 M cycles electrical/mechanical durability.
These circuit breakers are designed for connection by screw clamp terminals. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).
| SPECIFICATIONS | |
|---|---|
| Range | EasyPact |
| Product name | EasyPact TVS |
| Device short name | GZ1E |
| Product or component type | Circuit breaker |
| Device application | Motor |
| Trip unit technology | Thermal-magnetic |
| suitability for isolation | Yes conforming to IEC 60947-1 appendix 7.1.6 |
| Colour | Grey (RAL 7011) |
| Poles description | 3P |
| Network type | AC |
| utilisation category | AC-3 |
| network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Mounting mode | By screwsBy clips |
| Mounting support | Rail |
| Mounting position | Any position |
| Motor power kW | 0.37 kW at 400 V AC 50/60 Hz 0.55 kW at 440 V AC 50/60 Hz 0.75 kW at 500 V AC 50/60 Hz 1.1 kW at 690 V AC 50/60 Hz |
| Breaking capacity | Icu: >= 100 kA at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 Icu: >= 100 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 Icu: >= 100 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 Icu: >= 100 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 Icu: >= 100 kA at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type | Push-button |
| thermal protection adjustment range | 1…1.6 A |
| Magnetic tripping current | 22.5 A |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
