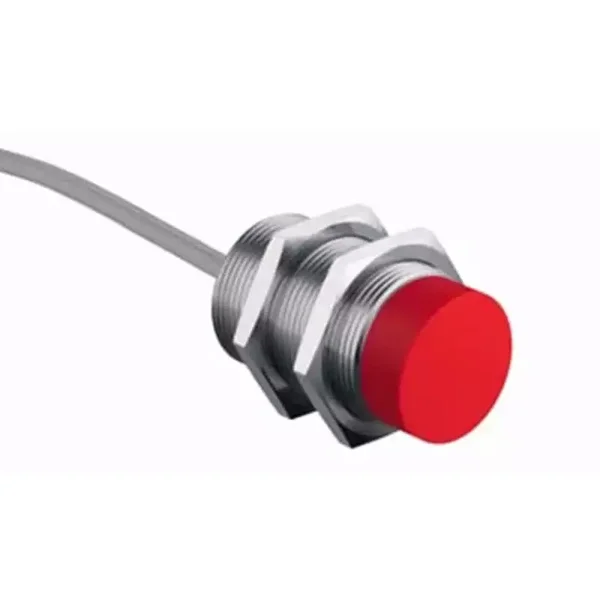

LEUZE IS 130 MM/4NO-15N (50129994)
LEUZE IS 130 MM/4NO-15N Overload protection Polarity reversal protection Short circuit protected.
| SPECIFICATIONS | |
|---|---|
| Series | 130 |
| Typ. operating range limit Sn | 15 mm |
| Operating range Sa | 0 … 12.15 mm |
| Protective circuit | Overload protectionPolarity reversal protectionShort circuit protected |
| Supply voltage UB | 10 … 30 V, DC |
| Residual ripple | 0 … 10 %, From UB |
| Open-circuit current | 0 … 10 mA |
| Temperature drift, max. (in % of Sr) | 10 % |
| Repeatability, max. (in % of Sr) | 1 % |
| Switching hysteresis | 15 % |
| Number of digital switching outputs | 1 Piece(s) |
| Voltage type | DC |
| Switching current, max. | 200 mA |
| Residual current, max. | 0.01 mA |
| Voltage drop | ≤ 2 V |
| Number of connections | 1 Piece(s) |
| Function | Signal OUTVoltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.35 mm² |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 45 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Metal housing | Nickel-plated brass |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000Silver |
| Type of fastening | Mounting thread |
| Standard measuring plate | 45 x 45 mm², Fe360 |
| ype of display | LED |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature, operation | -25 … 70 °C |
| Ambient temperature, storage | -25 … 70 °C |
